5. FES 310™ – Neck Harness – Lesson/Quiz

Note: The following content corresponds with pages 24 through 27.

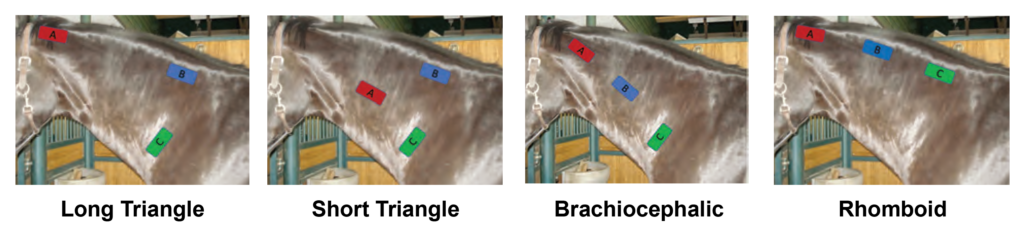

Shoulder Treatment Setup

1. Attach the surcingle (the strap that helps secure the system to the horse).
2. Ensure the area where the electrodes are being placed is dry.
   Note: Wet surfaces prevent the electrodes from sticking properly.
3. Use either the neck, back, or leg harness for the treatment, and treat each shoulder separately.
4. Attach the electrodes to the correct harness wires.
5. Apply conductive gel and connect everything to the system.
6. Set the treatment time (usually 20 minutes per shoulder).
7. Adjust the intensity until you see muscle contractions.
8. After treatment, turn the system OFF.
9. Disconnect and store the equipment.
10. Clean the electrodes.

Quiz Notes

The short practice knowledge quiz that follows is based on the information provided here and in your manual. This quiz is timed but not graded. Each question must be answered before advancing to the next question.

Note: Some of the questions in this quiz will also be included on the final Exam at the end of the course.
